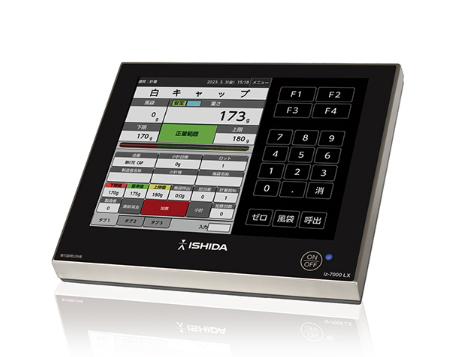

iz-7000 LX

– The iz-7000 LX is a multi-function scale that supports the
systemization and automation of weighing, counting, and blending tasks.
– Application software with a variety of functions to support weighing,
counting, and blending tasks is installed.
– You can easily introduce a systematization of your measuring tasks at low cost.
– The large 12.1-inch full-color touch panel provides excellent visibility and operability.

Weight Type

■ Reduces recording errors in weighing work
■ Information other than mass values, such as what and who did the work, can be recorded
■ Efficiently achieve weighing work to preset targets
■ Weight check with upper and lower limits memorized is possible

Counting Type

■ Counting results cover all items, such as the date of counting, lot number, worker name, and shipping destination name,
and work results can be recorded. Contributes to quality control
■ Efficiently achieve counting operations to preset targets

Composition Type

■ Register the mixture ratio (recipe) on the scale, and the scale will instruct the work
from calling the mixture to completion of the mixture
■ Prevents input errors, realizing safe and error-free weighing work
■ Can save weighing work performance data. You can check when, who,
and which work was performed, and can identify the cause of the error and take measures to prevent recurrence

Waste Weight Type

■ Record daily waste discharge on the scale. Promotes waste reduction by understanding
and quantifying “when,” “who,” “what,” and “how much” was discharged
■ Manages waste discharge at factories
■ Manages waste discharge for each tenant in shopping centers, etc.
■ Charging according to waste discharge is also possible

Product name iz-7000LX
Memory Built-in RAM: 1GB
Built-in non-volatile memory: 8GB
Display section 12.1 inch TFT color LCD 800 x 600dot (SVGA)
Touch panel (display) Power ON/OFF key x 1
Standard Interface 2 weighing scale connections, 1 LAN (100BASE)
1 RS232C (1 D-SUB9P), 3 USB2.0
1 I/F for relay box, 1 I/F for signal tower/buzzer
External shape Front cover: Stainless steel; Rear cover: ABS resin molding; Operation surface: Full PET sheet
W: 305mm H: 260mm D: 128mm
Hard options ● iz-7000LX exclusive option
・Hard key ・Waterproof box ・iz-RB (relay box)
・Branch box ・Signal tower ・Buzzer
● iz-7000LX peripheral connection devices
・Label printer LAN/USB connection (L-1000-12, BP-4300, L-2000AT)
・Journal printer USB connection (DAP-7000S, DAP-7000SR)
・1D symbol wand scanner USB connection (GT-20B, HC-76TU)
・2D symbol wand scanner USB connection (GT-20Q)
・USB memory
Soft options LAN license key Guidance license key
Mixing specifications Industrial waste measurement specifications
Power supply *1 Single phase AC100-240V
Power consumption 50W
